  • Product description: Ultrasonic Annunciator,Annunciator Alarm KLUA-4140A -Dia 41 x12mm, Worked with2.8V 40KHz ,Output 90dB at 50cm
  • INQUIRY

Ultrasonic Annunciator,Annunciator Alarm KLUA-4140A

KLUA-4140A  PDF Datasheet Download

Dia 41 x12mm, Worked with2.8V 40KHz ,Output 90dB at 50cm

Type

KLUA-4140A

Rated Voltage (Vrms)

2.83

Operating Voltage (Vrms)

≤20

*Resonant Frequency (KHz)

40±5

RatedFrequencyRange(KHz)

2.5~50

Capacitance 120Hz (PF)

80000±30%

*Sound Output50cm(dB)

≥90

Operating Temperature (℃)

-20~+60

Storage Temperature    (℃)

-30~+70

Weight  (g)

6

*Value applying at 2.83Vrms, 40 KHz sine wave50cm

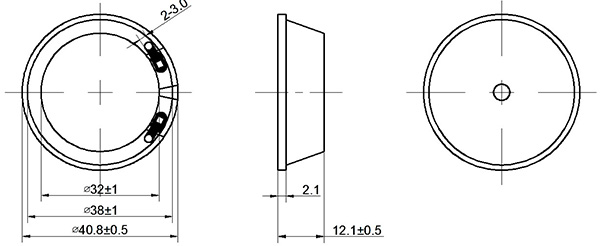

DIMENSIONS     Unit:mm     Tolerance:±0.5
