  • Piezo Transducer  HP1790A
Piezo Transducer  HP1790A

Piezo Transducer HP1790A

  • Product description: Piezo Audio Transducer Buzzer HP1770A -External-Driven ,Pin terminal type ,Dia 17 x9mm, Worked with 3V p-p 2KHz ,Output 70dB at 10cm
  • INQUIRY

Piezo Audio Transducer Buzzer HP1790A

Transducer Buzzer Datasheet:

HP1790A  PDF Datasheet Download

Pin termina  Type
External-Driven (Without oscillator circuit)
Dia 17 x9mm, Worked with 3V p-p 2KHz ,Output 70dB at 10cm

Type

UNIT

HP1790A

*Min. Sound Output at10cm

dB

70

Rated Voltage

Vp-p

3

Operating Voltage

Vp-p

1~25

Resonant Frequency

KHz

2.0±0.5

*Max. Current Consumption

mA

2

Capacitance at 1,000HZ

pF

25000±30%

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Housing Material


PPO

RoHS


YES

Weight

g

1.0


* Value applying at rated voltage

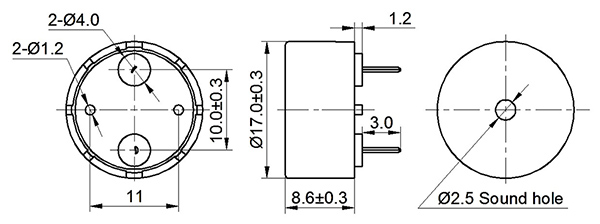

DIMENSIONS     Unit:mm     Tolerance:±0.5
