  • SMD Buzzer HCT9040B
SMD Buzzer HCT9040B

SMD Buzzer HCT9040B

  • Product description: Buzzer Datasheet- SMD Buzzer, SMD Magnetic Buzzer HCT9040B -External-Driven ,Surface Mount Type , 10.5x9 x H4,Worked with 3V p-p 2.7KHz ,Output 85dB
  • INQUIRY

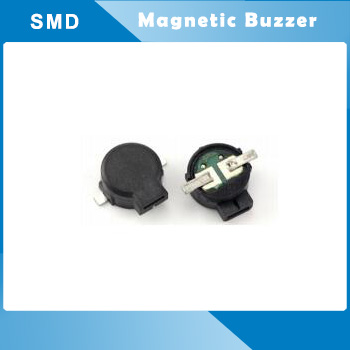

SMD Buzzer, SMD Magnetic Buzzer  HCT9040B

Surface Mount Buzzer

HCT9040B  PDF Datasheet Download


Surface Mount Type
External-Driven(Without oscillator circuit)

10.5x9 x H4,Worked with 3V p-p 2.7KHz ,Output 85dB at 10cm

Type

HCT9040B03

Rated Voltage        (V)

3

Operating  Voltage  (V)

2~5

Rated Current     (MA)

< 100

Coil  Resistance   (ohm)

16 ± 3

Sound Output at10cm(dB)

> 85

Resonant Frequency  (Hz)

2700

Operating Temperature  (℃)

-20~+70

Storage  Temperature  (℃)

-30~+85

Dimension

10.5*Ф9*H4

Weight                (g)

0.8

Value applying rated voltage (Resonant frequency,1/2duty,square wave)

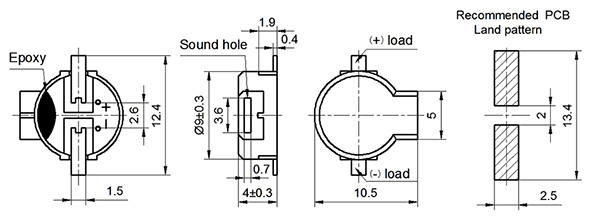

Dimensions (Unit:mm)
